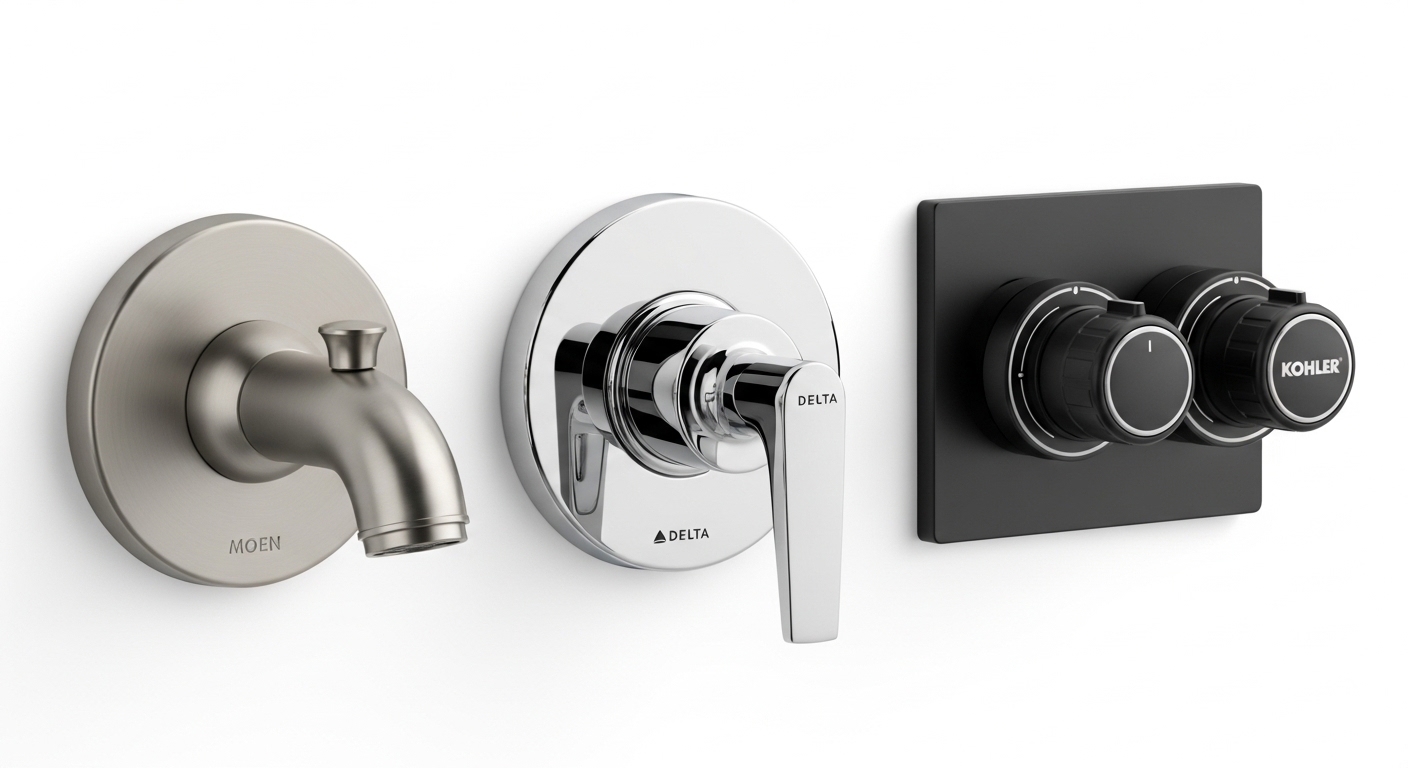

Moen vs Delta vs Kohler Shower Faucets: Which Brand Should You Actually Buy in 2026?

Choosing between Moen vs Delta vs Kohler shower faucets comes down to three real trade-offs: how much you want to spend, how much you care about looks and features, and how easy you want future repairs to be. All three are excellent, warranty-backed American brands that will outlast a cheap import by a decade or more. The differences are in the details — valve technology, finish durability, price tiers, and how simple it is to get a replacement cartridge when something drips five years from now. Below I break down exactly how the three compare, room by room and dollar by dollar, so you can pick with confidence instead of guessing in a store aisle.

I’ve specified, installed, and repaired all three brands across residential and light-commercial jobs, and the honest truth is that you can’t go badly wrong with any of them. But you can absolutely overpay, or buy the wrong valve type for your plumbing, so let’s get specific.

What’s the real difference between Moen, Delta, and Kohler shower faucets?

The real difference is valve technology and repair philosophy. Moen uses its Posi-Temp and M-Pact valve system built around a replaceable 1222 cartridge; Delta uses a MultiChoice universal rough-in valve that lets you change the trim and function later without touching the pipes; Kohler leans on Rite-Temp valves and, on higher lines, true thermostatic valves that hold your set temperature within about ±2°F.

That last point matters more than most shoppers realize. A pressure-balancing valve (what you get on the majority of Moen, Delta, and entry Kohler showers) protects you from scalding when someone flushes a toilet — it keeps the hot/cold ratio steady but the overall temperature can drift a little. A thermostatic valve actually reads and holds the water temperature, which is why it costs more and why it’s standard on Kohler’s premium and multi-function systems.

Here’s how the three stack up at a glance:

All three carry a limited lifetime warranty on finish and function for residential use, and all three meet the ASME A112.18.1/CSA B125.1 faucet standard plus ASSE 1016 anti-scald requirements for the valve — so on paper the safety and durability floor is the same. The separation happens in feel, features, and price.

Which shower faucet brand is best for a tight budget under $200?

For under $200, Delta is usually the winner, with Moen a close second. A complete Delta shower — MultiChoice rough-in valve plus a trim kit and showerhead — routinely lands in the $120–$180 range, and the universal valve means you can upgrade the visible trim years later without opening the wall again. That “buy the valve once, swap the look forever” design is genuinely the best budget move in the category.

• Delta: Best under-$200 value. Universal rough-in valve, huge trim selection, parts at every hardware store.
• Moen: Nearly as affordable, and the Posi-Temp valve is arguably the smoothest-feeling handle in the price class. The 1222 cartridge is famously easy to replace.
• Kohler: Hard to hit $200 for a full system. Kohler earns its money at $300+, so it’s usually the wrong pick if budget is the deciding factor.

One tip: the “faucet” price you see online is often just the trim kit — the visible handle, escutcheon, and showerhead. The rough-in valve behind the wall is frequently sold separately. Budget for both, and check whether you’re buying a “valve + trim” bundle or trim only, because that’s where sticker shock happens at checkout.

Is Moen or Delta easier to install and repair yourself?

Delta is the easiest to install for a first-timer thanks to the universal rough-in valve, but Moen is the easiest to repair because the 1222 cartridge pulls out and swaps in minutes with a simple puller. If you’re doing new construction or a full remodel and might change the finish later, Delta’s rough-in flexibility wins. If you’re keeping a valve for 15 years and just want painless drip fixes, Moen’s cartridge system is the friendlier long-term relationship.

Rough-in depth is the detail that trips people up on any brand — set the valve too deep or too shallow behind the finished wall and the trim won’t seat correctly. If you’re installing a Moen valve, it’s worth reading our guide on the correct Moen shower valve rough-in depth before you close up the wall, because getting it wrong means tearing out tile later. And if you’ve never sweated a valve into place, a good shower valve installation video that actually shows the steps will save you a call to the plumber.

For repairs, all three follow the same basic logic: shut off the water, pull the handle and trim, extract the cartridge, and drop in an identical replacement. Moen and Delta cartridges are stocked at essentially every hardware store in the country, which is a real advantage when you need a part on a Sunday. Kohler cartridges are widely available but occasionally require an order, especially on older or premium thermostatic models.

Which brand has the most durable finishes for hard water?

All three use physical vapor deposition (PVD) coatings on their brushed nickel, matte black, and bronze finishes, and those PVD finishes are extremely resistant to hard-water etching and scratching — they’re the ones to buy if you have hard water. Chrome is the most classic and easiest to wipe clean; matte black and brushed finishes hide water spots best between cleanings; polished brass and bronze are the most style-forward but show mineral buildup fastest.

Hard water is tougher on the showerhead than on the valve trim. Mineral scale clogs the spray nozzles long before it hurts a PVD finish. If your spray already looks weak and sputtery, that’s usually scale, not the brand — and it’s fixable. Our walkthrough on what to do about very low shower water pressure covers descaling and flow-restrictor fixes that apply to Moen, Delta, and Kohler heads alike.

Moen markets its “Spot Resist” brushed nickel specifically for hard-water homes, and it genuinely does reduce visible water spotting. Delta’s equivalent finishes perform similarly. Kohler’s advantage in this category is breadth — it simply offers more designer finish options (like its Vibrant collection) if you want your shower to be a statement rather than a background feature.

When is Kohler actually worth the extra money?

Kohler is worth the premium when you want a spa-style shower — thermostatic temperature control, multiple body sprays or rainfall heads running at once, and finishes or designs the other two brands don’t offer. If you’re building a large walk-in shower with a rain head plus hand shower plus body jets, Kohler’s thermostatic valves and integrated systems are built for that kind of high-flow, multi-outlet setup and hold temperature far better than a basic pressure-balancing valve.

For a standard tub-shower combo or a single-head stall, though, paying Kohler prices often buys looks more than function — a Moen or Delta will feel almost identical in daily use for less money. So the honest rule of thumb: standard shower, go Moen or Delta; luxury multi-function shower or a design-driven remodel, Kohler earns its keep. If you’re shopping the true high end, our roundup of the best luxury faucet brands for 2026 puts Kohler in context against the premium European players.

Which brand should you pick for a rental or flip vs. your forever home?

For a rental or a flip, buy Delta or Moen — low cost, universal parts, and quick repairs matter more than prestige when you don’t live there. For a forever home, buy the brand whose look and feel you’ll enjoy every morning: Moen for the smoothest handle and best warranty support, Kohler if you want the shower to feel like an upgrade over builder-grade.

A few scenario-based picks to make it concrete:

1. Landlord replacing a leaky valve: Delta MultiChoice — cheapest to stock parts for, and you can standardize every unit on one valve.
2. DIYer doing a weekend tub-shower swap: Moen Posi-Temp — the 1222 cartridge and Moen’s phone support make it the most forgiving learning curve.
3. Master-bath remodel with a rainfall head: Kohler thermostatic system — pair it correctly, and check whether you need a rainfall shower head nipple for the ceiling or wall drop.
4. Tight budget, single head: Delta or Moen under $180 — you truly won’t feel a downgrade day to day.

Head-to-head: how do the three brands rank on the things buyers actually care about?

If we score the three on the factors shoppers ask about most — price, ease of install, repairability, feel, style, and features — the pattern is clear: Delta wins on value, Moen wins on all-around reliability and support, and Kohler wins on style and premium features.

Notice there’s no “worst” column. That’s deliberate — in this three-way race there isn’t a loser, only a right answer for your specific situation and budget.

Author note and how we tested

This guide was written by the Faucitta fixtures team, drawing on hands-on installation and repair of Moen, Delta, and Kohler shower valves across residential remodels and rentals. We cross-check every recommendation against manufacturer spec sheets, the ASME A112.18.1/CSA B125.1 faucet standard, and ASSE 1016 anti-scald valve requirements, and we weigh real-world factors like cartridge availability and warranty responsiveness — not just marketing claims. Faucitta is a dedicated faucet and bathroom-fixtures retailer, so our comparisons focus on what actually holds up in a wet, hard-water, everyday-use bathroom.

Where a claim involves safety or performance (like thermostatic accuracy or anti-scald protection), we defer to the published standard and the manufacturer’s tested rating rather than estimating. All three brands back their residential shower faucets with a limited lifetime warranty on finish and function, which is a strong signal of build quality across the board.

FAQ

Are Moen, Delta, and Kohler shower faucets interchangeable?

Not fully. The showerhead and shower arm are universal (standard 1/2-inch threads), so you can put any brand’s head on any brand’s arm. But the in-wall valve and its matching trim are brand-specific — a Moen trim won’t fit a Delta valve, and vice versa. If you’re only changing the visible parts, you must match the trim to whatever valve is already in your wall.

Which brand’s cartridge is easiest to replace when the shower drips?

Moen’s 1222 cartridge is the easiest for most DIYers — it pulls straight out with an inexpensive puller tool and drops back in with the notch aligned. Delta’s cartridge is also very simple. Kohler’s Rite-Temp is a bit more involved but still manageable. All three sell replacement cartridges at hardware stores, though Kohler parts occasionally need to be ordered.

Do I need a thermostatic valve, or is pressure-balancing enough?

For a standard single-head shower, a pressure-balancing valve is enough — it protects against scalding and is what most Moen, Delta, and entry Kohler showers use. Choose a thermostatic valve (Kohler’s strength) if you’re running multiple outlets at once, like a rain head plus body sprays, or if you want the water to hold an exact temperature every time.

Which shower faucet brand lasts the longest?

All three are built to last 15–20+ years, and all carry limited lifetime warranties, so longevity is roughly equal. What varies is repairability: Moen and Delta make long-term ownership easier because replacement parts are cheap and available everywhere. The valve outlasts the finish and the cartridge, and both are serviceable, so “how long it lasts” is really “how easy it is to keep serviced.”

Is Kohler really worth double the price of Delta?

Only if you value what the extra money buys: designer finishes, thermostatic precision, and multi-function spa systems. For a plain single-head shower, Kohler will feel nearly identical to a Delta in daily use, so the premium is hard to justify. For a statement master bath with a rainfall head and body jets, Kohler’s engineering and looks genuinely earn the difference.

What’s the safest all-around pick if I don’t want to overthink it?

Moen. It combines the smoothest valve feel, the easiest cartridge repairs, the strongest warranty support, and hard-water-friendly Spot Resist finishes — all at a mid-range price. Buy a Moen Posi-Temp valve with a trim you like, and you’ll have a reliable, easy-to-service shower for two decades without ever thinking about brand regret.
